Black Liquor Gasification

What is Black Liquor?
Industrial paper manufacture involves a procedure known as the Kraft process, where wood is converted into wood pulp and then into paper. The process, however, produces a toxic byproduct referred to as black liquor. This primarily liquid mixture of pulping residues (like lignin and hemicellulose) and inorganic chemicals from the Kraft process (sodium hydroxide and sodium sulfide, for example) is toxic and until the invention of recovery boilers in the early 20th century was often simply released into waterways. Recovery boilers allowed paper manufacturers to recover and reuse the inorganic chemicals and extract energy from the pulping residues. Many of these boilers were built in the 1960s and 70s and will need to be replaced sometime in the next few decades. The replacement of these boilers brings new interest in producing not only steam and electricity, but perhaps also fuels and chemicals via gasification of black liquor.

Also see gasification of biomass, as the paper manufacturing industry has access to large amounts of other forest residuals aside from just black liquor.

Wood delivery to pulp mill
Wood delivery to pulp mill

For perspective on how much black liquor is produced, one third of all pulping mills in the United States produce 6 million lbs/day of black liquor each. The black liquor is typically 15-20% solids by weight and these so-called "black liquor solids" contain about half the energy of the original woodchips. The older method to recover this energy involved concentrating the solution to about 75-80% solids by weight and then burning in a recovery boiler to generate steam. A gasification system, however, can feed the liquor into a high-pressure gasifier to produce electricity, steam, or potentially any other gasification product. This solves many of the difficulties associated with feeding other biomass feedstocks.

Black Liquor Gasifiers and System Integration
Pulping plants represent a substantial opportunity for integration with gasification. The paper manufacturing industry already has systems in place for handling biomass and gasification allows for its more efficient use. Black liquor gasification can provide some of the electricity and steam needs required by the pulping plant and can perhaps, in the case of a biorefinery, be tailored to produce salable liquid fuels or chemicals. Integration with an existing plant can also lower the initial capital costs of constructing a gasification facility and is generally easier to license than a new ("greenfield") plant.

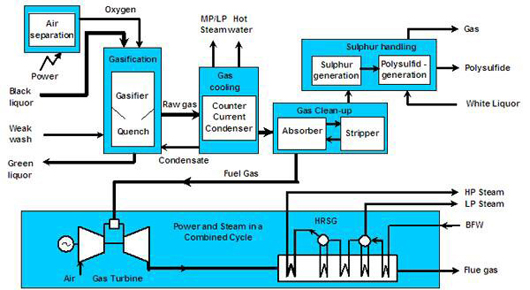

Chemrec black liquor gasification combined cycle (BLGCC) process schematic (source: Chemrec)
Chemrec black liquor gasification combined cycle (BLGCC) process schematic (source: Chemrec)

The Kraft process chemicals in black liquor and the high temperatures of gasification (around 950°C) exert tremendous strain on the gasifier itself, especially the heat resistant refractories that line the reactor (a problem discussed elsewhere). Refractories can see as much as 40% material loss from the harsh environment. Current refractories often force the plant to shut down for maintenance/replacement on a six-month schedule rather than synchronizing with many existing 12-month plant maintenance schedules. The U.S. Department of Energy (DOE) is developing new refractories to improve gasification of black liquor. The factsheet entitled EERE- Advancement of High Temperature Black Liquor Gasification Technology [PDF] (Apr 2006) describes the research project while the paper entitled EERE - Refractory for Black Liquor Gasifiers [PDF] (Apr 2006) describes the problem and gives background on black liquor gasification.

  An excellent study on the use of gasification with Kraft process paper pulping is A Cost-Benefit Assessment of Gasification-Based Biorefining in the Kraft Pulp and Paper Industry (Princeton University Energy Group Web Page - Dec 2006), Volume 1; Volume II also is available.

Black liquor can be gasified and then combusted in a turbine to generate electricity. With a heat recovery steam generator (HRSG), the plant can be run in a combined cycle, similar to an integrated gasification combined cycle (IGCC). This specific configuration using black liquor is sometimes called a black liquor gasification combined cycle (BLGCC). If integrated into a pulping mill, BLGCC can be scaled to provide as much power or steam as possible from the black liquor input or the turbine can be co-fired with natural gas to produce extra electricity. The BLGCC represents a much more efficient means of electricity production than the older, more commonly used recovery boilers.

Syngas from black liquor gasification can also be used to synthesize liquid fuels or chemicals.

Syngas from black liquor gasification can also be used to synthesize liquid fuels or chemicals. The Princeton study developed seven black liquor gasification synthesis designs: three variations on dimethyl ether (DME) production, three Fischer-Tropsch liquid fuel (FTL) plans, and one for mixed alcohols (methanol, ethanol, etc.). When using black liquor (or biomass in general) this type of facility is often called a biorefinery. The study (linked above) indicated that an integrated pulp mill/liquid fuels gasification system could reduce the cost to produce a biofuel to approximately $1 per gallon of ethanol equivalent.

The paper does suggest that at the scale of most paper mills, black liquor gasification for power production may be more economical than liquid fuel synthesis, which would benefit from a larger scale.

Examples of Black Liquor Gasification Facilities
ThermoChem Recovery International (TRI) is a biomass-to-energy company headquartered in Baltimore, Maryland. TRI has a proprietary PulseEnhanced™ steam reforming gasification system that was developed with funding from DOE. TRI has two black liquor gasification facilities:

  • Norampac Trenton, Ontario, Canada
    Norampac is the largest containerboard manufacturer in Canada, producing 500 tons per day (tpd) corrugating medium at its Trenton mill. TRI's steam reforming gasification system was commissioned and designed to handle 115 metric-tons-per-day of black liquor solids. The process was started in September 2003, passed its performance test in April 2005, and completed air emissions testing in October 2006. It has since logged over 18,000 hours of operation.
  • Georgia-Pacific Corporation Big Island, Virginia, USA
    Georgia-Pacific is one of the world's largest paper companies and the Big Island mill produces 900 tpd of linerboard and 600 tpd of corrugating medium. TRI's steam reforming gasification system was commissioned to process 200 tpd of black liquor solids. The system start-up and operation in 1Q 2004 was not as smooth and successful as TRI's Norampac and, in October 2006, Georgia-Pacific decided to cease operation of the reformers.

Chemrec, a Swedish black liquor gasification technology developer, has constructed two black liquor gasification plants:

  • Weyerhaeuser New Bern, North Carolina, USA
    This project is a collaboration between Chemrec and the U.S. DOE Energy Efficiency and Renewable Energy division. The gasifier began operation in December 1996, with a new reactor vessel design installed in 2003. It processes 330 tpd of black liquor solids (15% of the pulping mill's recovery capacity) into 50 MWth. As of early 2008, the atmospheric, air-oxidized gasifier had operated for about 50,000 hours.
  • Chemrec DP-1 Development Plant Pitea, Sweden
    Chemrec's development plant for oxygen-blown, pressurized (30 bar) gasification, it processes 20 tpd black liquor solids, providing 3 MWth.
References/Further Reading
  • Black Liquor Gasification with Motor Fuel Production - BLGMF II
    Thomas Ekbom and Niklas Berglin, Nykomb Synergetics, December 2005.
  • Technical and Commercial Feasibility Study of Black Liquor Gasification with Methanol/DME Production as Motor Fuels for Automotive Uses - BLGMF
    Thomas Ekbom and Mats Lindblom, Nykomb Synergetics, December 2003.
