Subsurface Monitoring

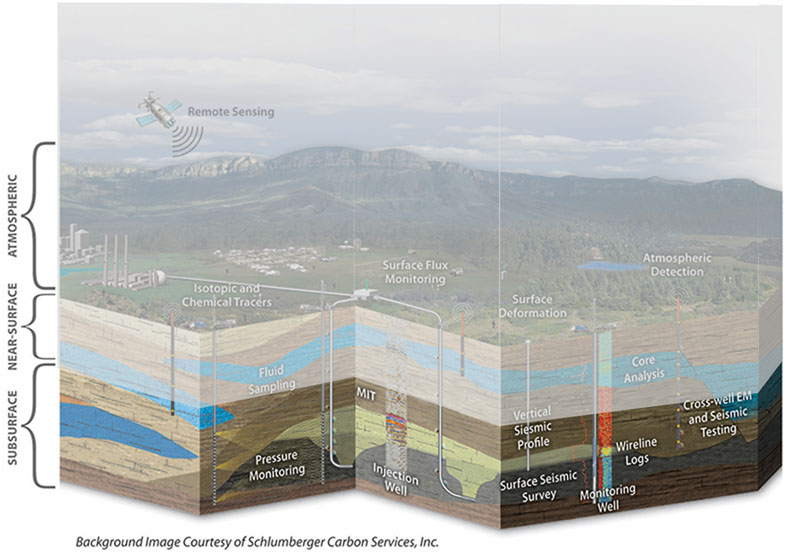

MVA monitoring domains, featuring the Subsurface domain.
MVA monitoring domains, featuring the Subsurface domain.

The Subsurface Monitoring key technology covers tools and techniques used to map the CO2 plume, document physical property changes deep within the subsurface, and identify potential migration pathways in the geologic carbon storage reservoir. Subsurface monitoring tools are used to detect and quantify COthat has been injected into a geologic storage reservoir and to detect faults, fractures, and any seismic activity that may be present in the injection zone and adjacent confining zones.


Development and advancement of subsurface monitoring tools is a key research area. Typically used subsurface monitoring tools include well logging tools, downhole monitoring tools, subsurface fluid sampling, tracer analysis, seismic-imaging methods, high-precision gravity methods, and electrical techniques. Such tools are needed to:

  • Track the movement of the injected CO2 plume through the storage reservoir
  • Define the lateral extent and boundaries of the plume
  • Track associated pressure changes and other physical property changes in the reservoir
  • Identify possible release pathways
  • Demonstrate long-term stability of the CO2 plume

Most techniques and tools used for subsurface monitoring are also used to characterize the geologic framework and rock and fluid properties of the storage reservoir. Monitoring is relatively straightforward near wells (via logging and downhole sensors), but can become more challenging (and possibly expensive) when performing measurements over the large area typical of a geologic storage project.

Research Agenda and Challenges

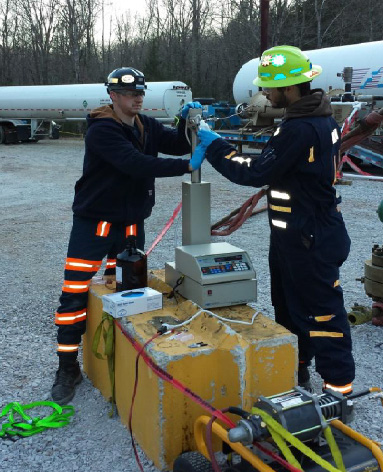

Research team injecting fluorinated tracers at a shale test site in Tennessee
Research team injecting fluorinated tracers at a shale test site in Tennessee

Major challenges in subsurface monitoring include the need to monitor large areas and to distinguish between the pressure front and the injected CO2 plume front. Additionally, tools for subsurface placement must withstand high pressures and temperatures and potentially deep, corrosive environments over very long periods. Many subsurface monitoring techniques were originally designed for oil and gas exploration and development and have been adapted for use in CO2 storage applications. Some technologies, such as well logging and reflection seismic imaging, have reached a highly sophisticated level as a result of decades of utilization in the petroleum industry. An initial focus of R&D activities for MVA of geologic carbon storage has been to adapt these methods to the specific requirements of CO2 injection, storage, and long-term monitoring. Some of these subsurface monitoring technologies are now available commercially and are being utilized in injection projects to identify formation characteristics and track CO2 migration and pressure changes in the reservoir.

Many subsurface monitoring techniques do not directly measure CO2; rather, they detect changes in another property, such as seismic velocity, electrical resistivity, or chemical changes in formation fluids, which may then be interpreted to provide relevant information about CO2.
NETL’s research pathways for new subsurface monitoring research include:

  • By 2020: Develop methods for improved geophysical imaging and detection of CO2 plumes, specialized subsurface sensors, and methods to distinguish between pressure front, brine front, and plume front. The development of long-term monitoring tools that can withstand long-term exposure to subsurface conditions is also included in this research area.
  • By 2030: Develop and test novel geophysical approaches that utilize long-term and permanent tools for direct and indirect measurements of CO2 saturation and employ high-resolution and cost-effective monitoring. Projects to develop advanced data analysis and modelling methods for distinguishing pressure front, brine front, and CO2 plume front are also included in this research area.

The figure below shows an approximate timeline for technology development along both pathways.

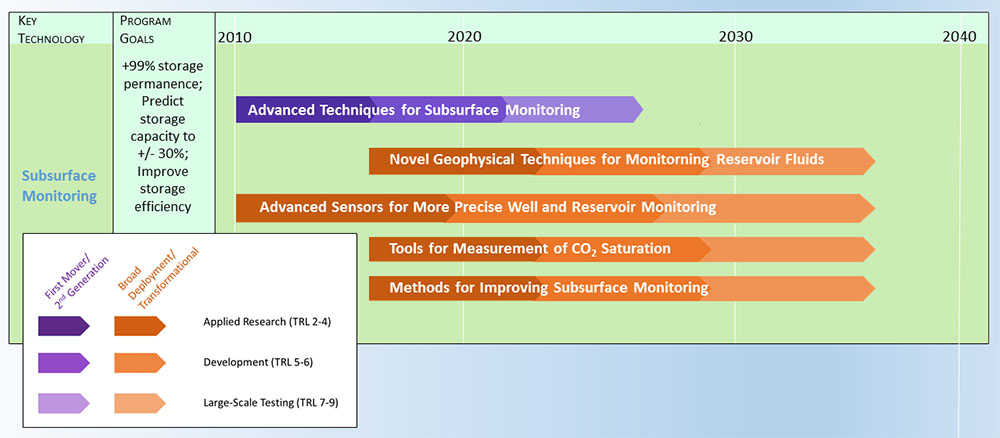

Storage MVA Research Timeline for Subsurface Monitoring
Storage MVA Research Timeline for Subsurface Monitoring


NETL-Supported Subsurface Research

Vibroseis trucks being utilized for the acquisition of seismic data to characterize the subsurface at a CO2 storage site.
Vibroseis trucks being utilized for the acquisition of seismic data to characterize the subsurface at a CO2storage site.

NETL supports projects that are addressing research challenges within the Subsurface Monitoring key technology area. For instance, projects supporting this key technology area have included: improvement of seismic data interpretation; novel approaches to tracking CO2 plumes; integration of monitoring data into simulation efforts; development of remote sensing capability for assessment over large areas; and development of monitoring tools to detect potential CO2 leakage events.
The MVA webpage  offers links to detailed information on projects performing research in this area.
