This project is developing a multi-parameter system for the highly sensitive and accurate detection of carbon dioxide in groundwater. The stand-alone system will include novel distributed fiber optic sensors for CO2, pH, and salinity, as well as a commercially available distributed sensor for temperature. The sensors will be fabricated by coating optical fibers with chemically-sensitive indicator-doped polymers, thus rendering the entire length of the optical fiber a sensor capable of covering large areas in distances of thousands of feet. The project involves developing two novel sensitive claddings for salinity and pH sensing. Once developed, optical cables sensitive to each parameter will be produced. Those cables will be combined with a CO2 sensitive cladded fiber as well as an off the shelf fiber optic temperature sensor to produce a real time monitoring network to be used for CO2 storage monitoring, verification, accounting (MVA), and assessment operations, which will be validated in the field.

image_plp

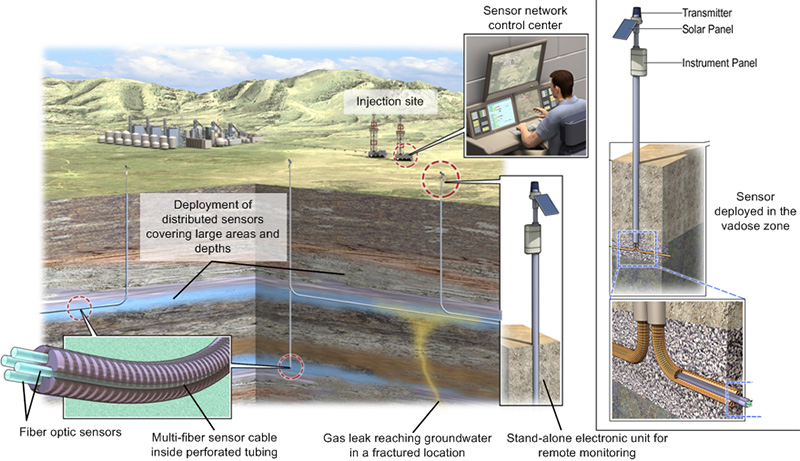

(Left) Depiction of the multi-parameter system incorporating CO2, pH, salinity, temperature sensors, and RICO2M Net deployed in a highly fractured area within sources of drinking water; and (Right) depiction of the distributed sensor deployed in the vadose zone
plp_DOD_share
Off
Presentations_plp
Principal Investigator
Jesus Delgado-Alonso
jdelgado@intopsys.com
Project Benefits

This project focuses on developing real-time near-surface monitoring capability for detecting possible CO2leakage in groundwater. Better CO2 near-surface monitoring methods allow project developers to more confidently ensure that CO2 is permanently stored, and understand impacts on groundwater, should a leak occur and this improved monitoring will contribute to better storage technology thus reducing CO2emissions to the atmosphere.

Project ID
FE0012706
Website
Intelligent Optical Systems Inc.
http://www.intopsys.com/
