Multi-Attribute Seismic/Rock Physics Approach to Characterizing Fractured Reservoirs
Project Number
DE-AC26-99FT40692
Goal

To goal of this project is to improve the detection of fractures in tight natural gas reservoirs.

Performer

Stanford University
Marathon Oil Corp.

Location:
Stanford, California 94305
East Texas Neuville Field

Background

Most current seismic methods to characterize fractures depend on a few anisotropic wave propagation signatures that can arise from aligned fractures. While seismic anisotropy can be a powerful fracture diagnostic tool, a number of situations can lessen its usefulness or introduce interpretation ambiguities. Laboratory and theoretical work in rock physics indicates that a much broader spectrum of fracture signatures can occur, including a decrease in P- and S-wave velocities, a change in Poisson’s ratio, an increase in velocity dispersion and wave attenuation, as well as indirect imaging of structural features that can control fracture occurrence. Many of these lead to “isotropic” fracture signatures that have the potential for complimenting or replacing some of the anisotropic methods. Many of these fracture signatures can be extracted from conventional 3D seismic data.

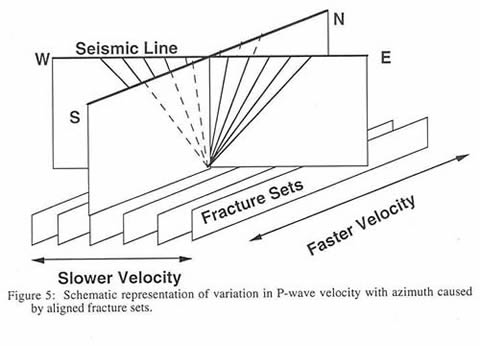

Figure 5: Schematic representation of variation in P-wave velocity with azimuth caused by aligned fracture sets.

This project developed an integrated strategy to detect and characterize natural fractures in rocks. The approach was to develop a quantitative scheme for integrating the diverse sources of information and to exploit the principles of rock physics as the link among seismic, geologic, and log data.

Impact

The project will have an impact on service companies and other seismic contractors, because it provides a new methodology for integrating well log, surface seismic, and wellbore seismic data.

The tectonic bowtie deformation in this outcrop is associated to faults with less than 1 meter of vertical offset. These faults are below the limit of seismic resolution. This project is developing a mechanical model to detect these fractures, which may have a significant impact on both rock impedance and rock permeability.
The tectonic bowtie deformation in this outcrop is associated to faults with less than 1 meter of vertical offset. These faults are below the limit of seismic resolution. This project is developing a mechanical model to detect these fractures, which may have a significant impact on both rock impedance and rock permeability.



Accomplishments (most recent listed first)

This project established specific relationships that link fracture parameters with their geophysical signatures, by looking at a wide range of data—mainly vertical seismic profiling (VSP), well log, and geologic data—from the James Lime formation in the East Texas Neuville field. Rock physics modeling was calibrated to well logs to determine the seismic signatures of specific types of fractures, and model results were compared with observed fractures imaged by the VSP. The results confirm that fracture networks are visible as particular amplitude and time signatures on the multi-offset, multi-azimuth VSP record. Most importantly, the results show that some of the remaining ambiguity relating to fracture orientation can be better resolved with the spatial and azimuthal coverage allowed by 3D seismic. A statistical formulation was developed to integrate the diverse data types and to quantify the uncertainties associated with fracture detection.

Validation of this new methodology through a small-scale pilot study in the Yates field in West Texas is complete. VSP data (Schlumberger) and well log data (Marathon) from the East Texas James Lime reservoir have been correlated with the fracture density, including a correlation between Vp, Vs, p-impedance, Poisson’s ratio, and Amplitude versus Angle and Azimuth (AVAZ) analysis. Refinement of the interpretation and integration strategy using a 3D seismic dataset is complete. Samples of 3D seismic from Marathon indicate that the same types of fracture-related amplitude anomalies can be seen as were observed with the VSPs. In addition to testing and refining the relationships established using VSP, the use of 3D seismic data allowed more reliable mapping of fracture orientations. All of the data were integrated into a probabilistic model for predicting fracture densities.

Current Status

The project was completed November 30, 2004.

Project Start
Project End
DOE Contribution

$1,172,901

Performer Contribution

$1,000,864

Contact Information

NETL – Frances Cole Toro (304-285-4107 or frances.toro@netl.doe.gov
Stanford University – Gary Mavko (650-723-9438 or gary@pangea.stanford.edu)
